Makinë shtypëse me fuqi 10T 16T 160t 63t pllakë hekuri

Shtëpi / Produktet / Makinë shtypëse me fuqi 10T 16T 160t 63t pllakë hekuri

Veçoritë

● The Series Punching machine adopt rigid rotated key clutch with simple structure , easy operation and maintenance , helical gear transmission , smooth operation and low impact .

●J23-25 open inclinable punching machine , first changed from traditional sliding bearing to ball bearing with higher wear resistance , avoid generating big gear noise due to brass faster abrasion .

● J23 Series Open inclinable punching machine is unique in the industry with transmission brass gear .

● Redesigned machine body with higher strength , at the same time , completed with ball beading transmission ( small noise)

●J23-80 and above tonnage punching machine is in pneumatic dual-balance cylinder structure with low balance fluctuation , balancing slider and upper die weight , and avoid machine shaking caused by after-mentioned weight .

● Prevent gear backward force colliding and making noise , eliminating clearance between connecting rod and slider and reducing force component impact and abrasion .

● Avoid slider falling accidents due to brake failure or connect rod breadage .

Configuration

●Chinese high-performance motor

●France Schneider electric

●Safety standard (2006/42/EC )

●Left and right safety fence

●Open electric cabinet door to cut off power

●China pedal switch (Safety Grade 4 )

●Left and right safety fences line with CE Standard

● Safety relay monitors pedal switch , safety protection

Technical Parameters and specifications

NR
Parametrat Teknikë
Njësia
JB23-160T
1
Norminal Pressure
KN
1600
2
Norminal Pressure stroke
mm
10
3
Slide Stroke
mm
130
4
Max Closed Height
mm
410
5
Die hight adjustment
mm
80
6
Bolster size（F.B*L.R）
mm
650*1100
7
machine outline size（L*W*H）
mm
2000*1600*2900
8
Fuqia motorike
KW
15
9
Motor speed
R/min
10
Pesha
KG
12000

Parts

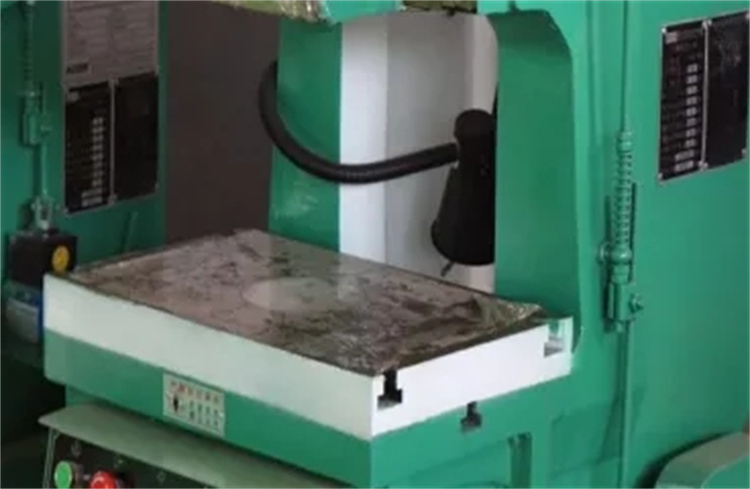

Tabela e punës
The work surface is made of stainless steel, with high hardness, corrosion resistance, oxidation resistance, long service life, and the size can also be adjusted.
Optional for fence and light curtain
The protective fence is braided and welded, the grid structure is simple, and the product is sturdy and durable
Working Lamp
High brightness, long life, can be adjusted and moved flexibly with the working area.
Electrical France Schneider
Use French schneider electrics to ensure machine stability , High quality electric parts can perform well even the electricity is not stable and customs can easily get the replacement anywhere in the world.
